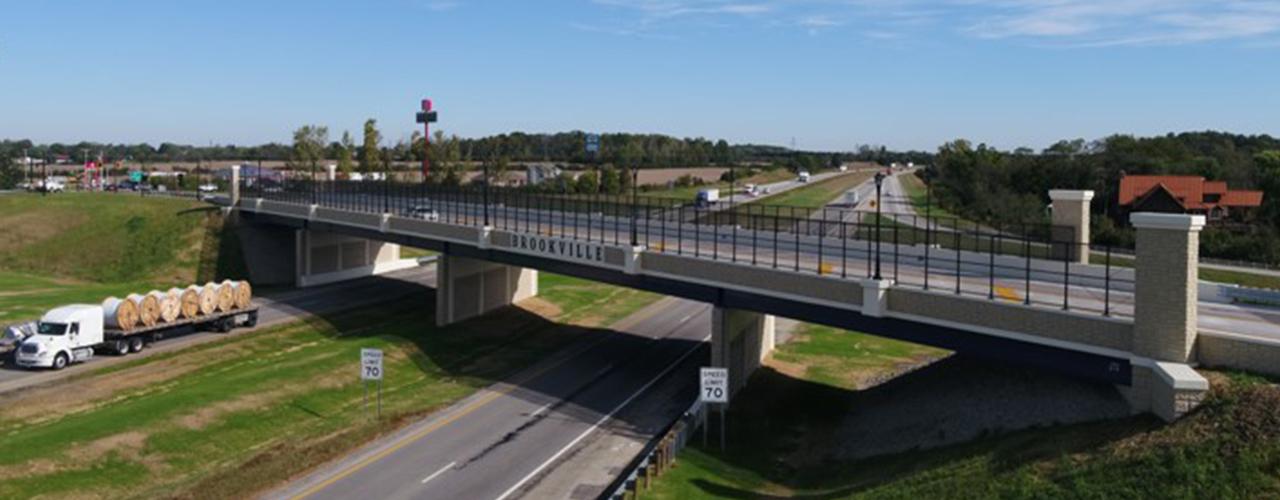

Ohio Department of Transportation (ODOT) District 7 sought to rehabilitate a highly skewed bridge, MOT-70 Arlington Road Bridge, while widening roadways and ensuring compliance with stringent vertical clearance standards. Leveraging advanced geospatial technologies like mobile mapping systems and Lidar, alongside meticulous CAD integration, the project achieved remarkable feats in design optimization and construction sequencing. Through the strategic use of these tools, the project not only minimized disruption with efficient maintenance of traffic plans but also delivered cost-effective solutions, surpassing stakeholder expectations. The collaborative efforts of the Ohio Department of Transportation (ODOT), the City of Brookville, and various stakeholders culminated in a successful endeavor that not only enhanced urban accessibility but also set a benchmark for future infrastructure projects.
