CASE STUDY

    SECTOR

    Architecture Engineering and Construction, Natural Resources and Environment, Public Safety and Security

    Satellite view

    Source: Ed. Züblin AG

    bridging-the-gap-digital-reconstruction-of-hllentalklamm-bridge


    Source: Ed. Züblin AG

    Project Details

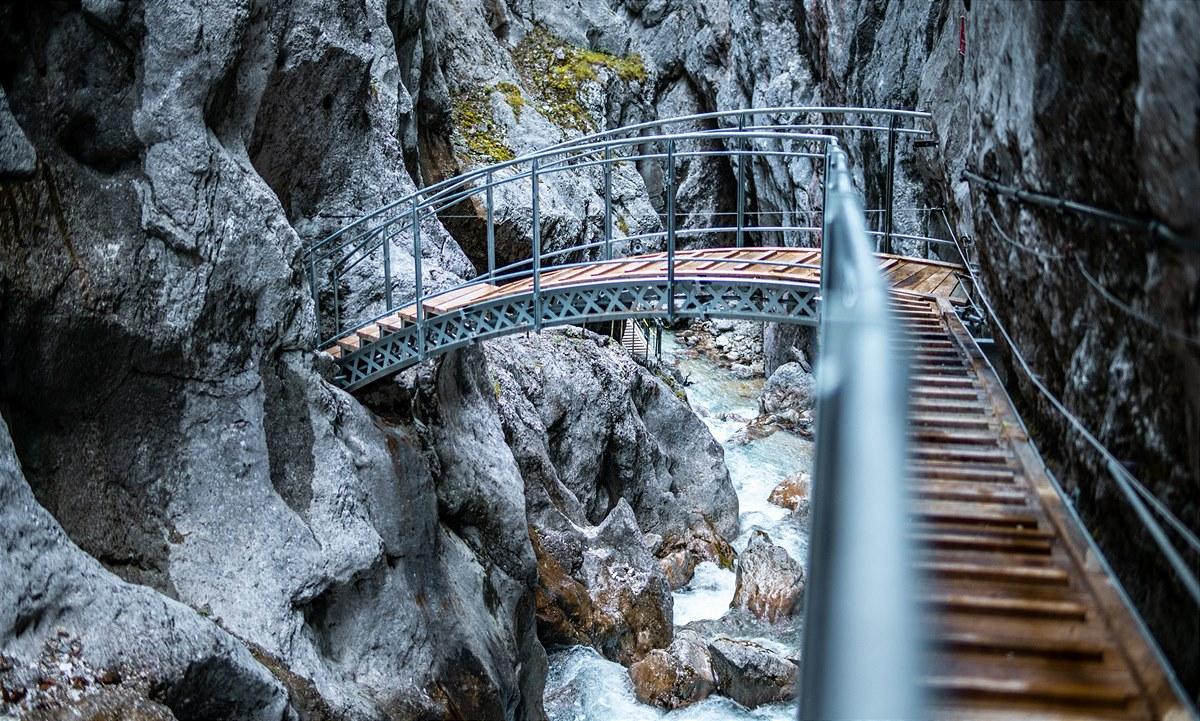

    The Höllentalklamm, or Hell's Gorge, near Garmisch-Partenkirchen in the German Alps, is a natural spectacle 1,000 meters high. It's part of the trail to Zugspitze peak, requiring a historic bridge built in 1905. Due to deterioration, the bridge and footbridges were replaced in 2020 with funds raised by the German Alpine Association (DAV) and support from ZÜBLIN / STRABAG and Thyssen-Krupp. The original bridge, completed over 600 working days without modern machinery, was replaced manually. ZÜBLIN / STRABAG engineers, local company Florian Dörfler, and DAV volunteers prefabricated new bridge components, navigating challenging terrain and a narrow gorge.



    Solutions
    Product Used

    Value Propositions

    Return on Investment (RoI)
    Geo_icon
    GeographyEurope

    Location_icon
    CountryGermany

    Project_owner
    Project Owner

    German Alpine Club


    Project_stakeholder_icon
    Project/Technology Stakeholder

    STRABAG SE; thyssenkrupp AG; Leica Geosystems AG


    Project_cost_icon
    Project CostUSD 2,60,000 (approx.)

    Calendar_icon
    Completed Year/Projected Completion Year2020

    Technology Used
    Sector Focus
    SDGs
    Recognition/ Awards
